GLOBTOS F65-25

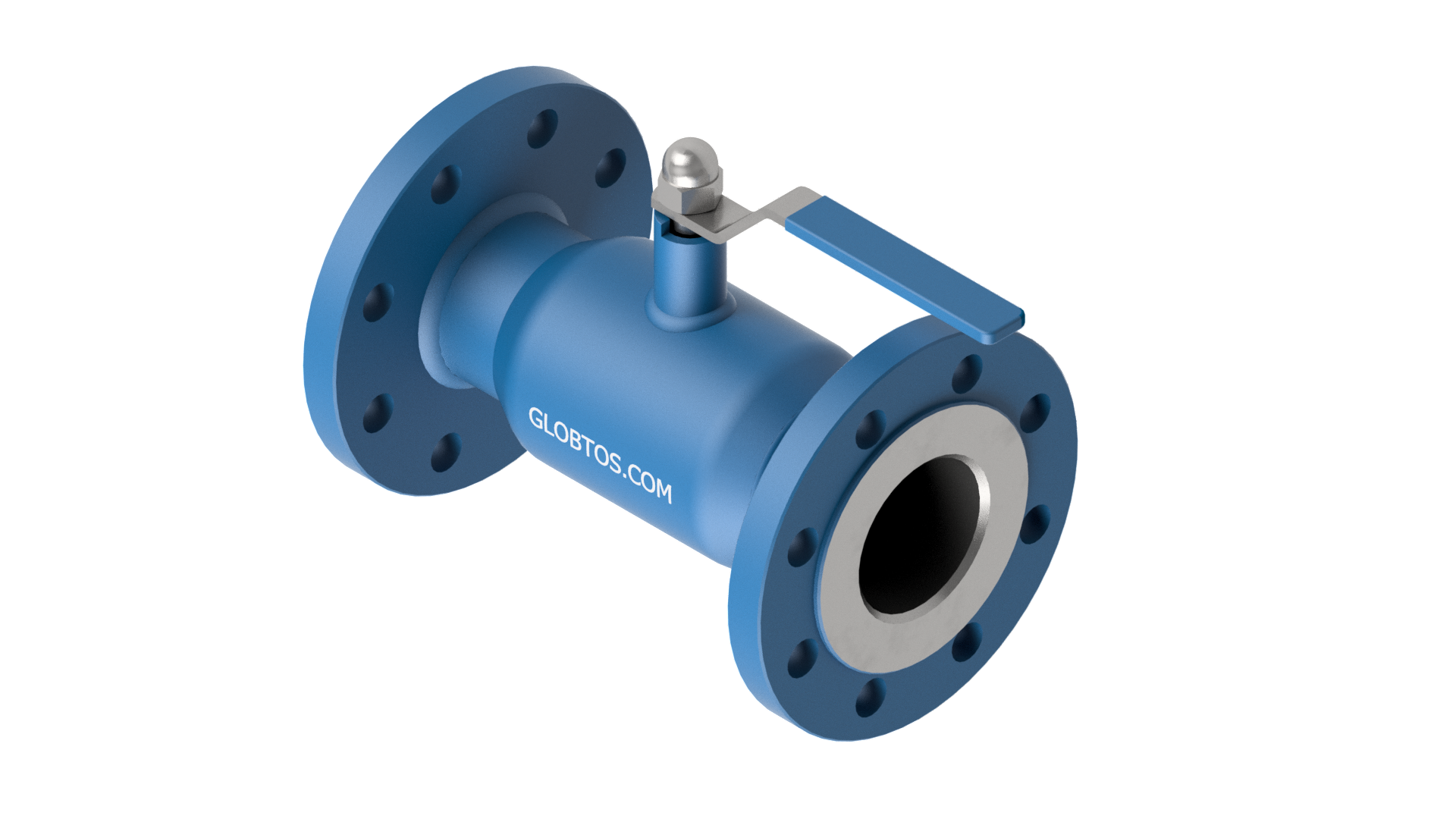

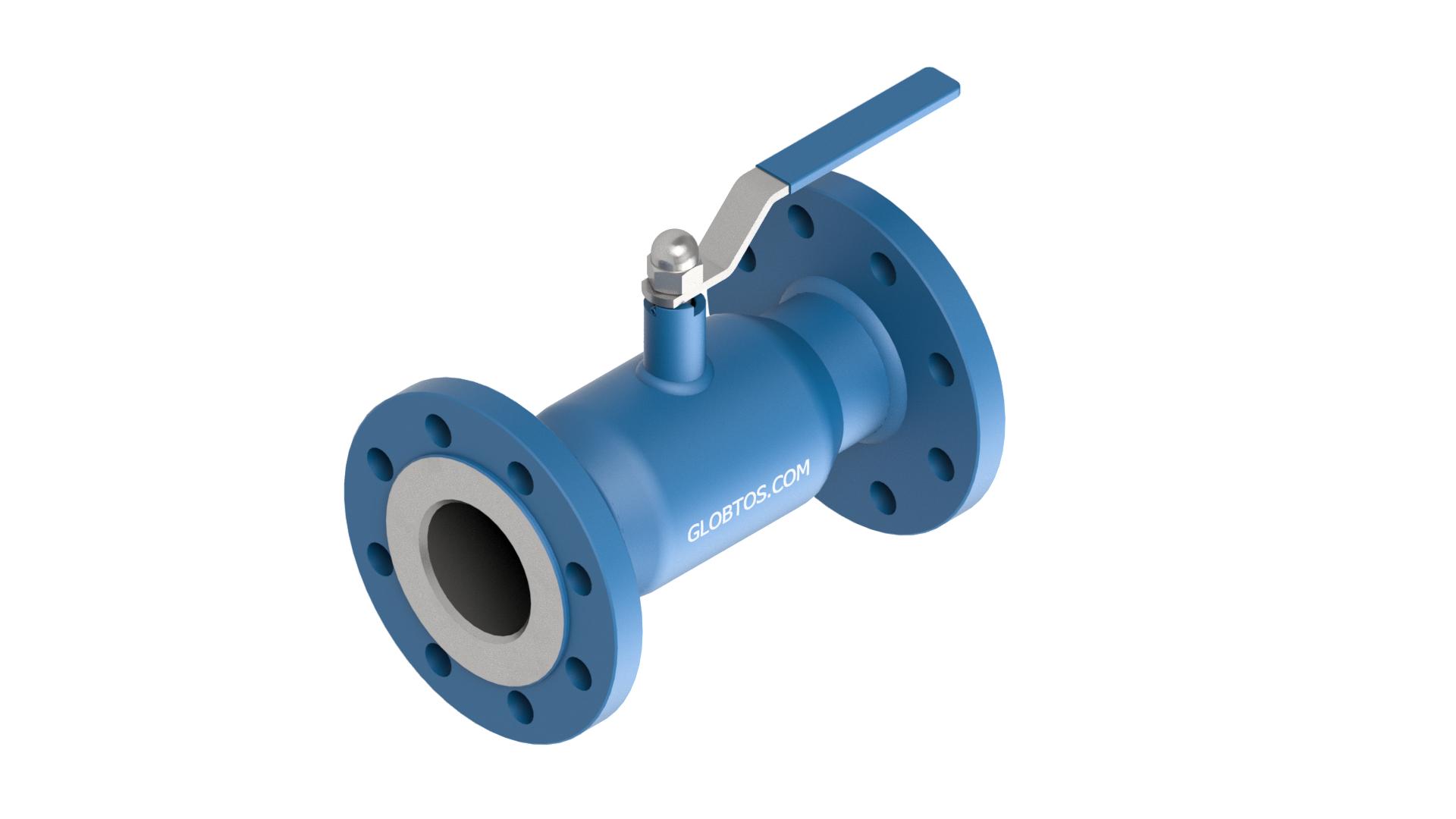

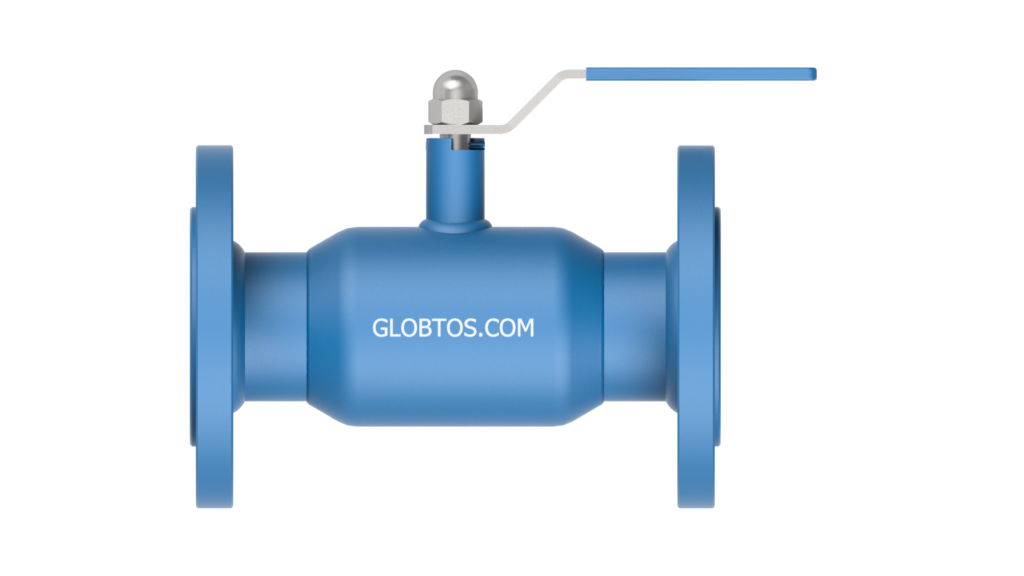

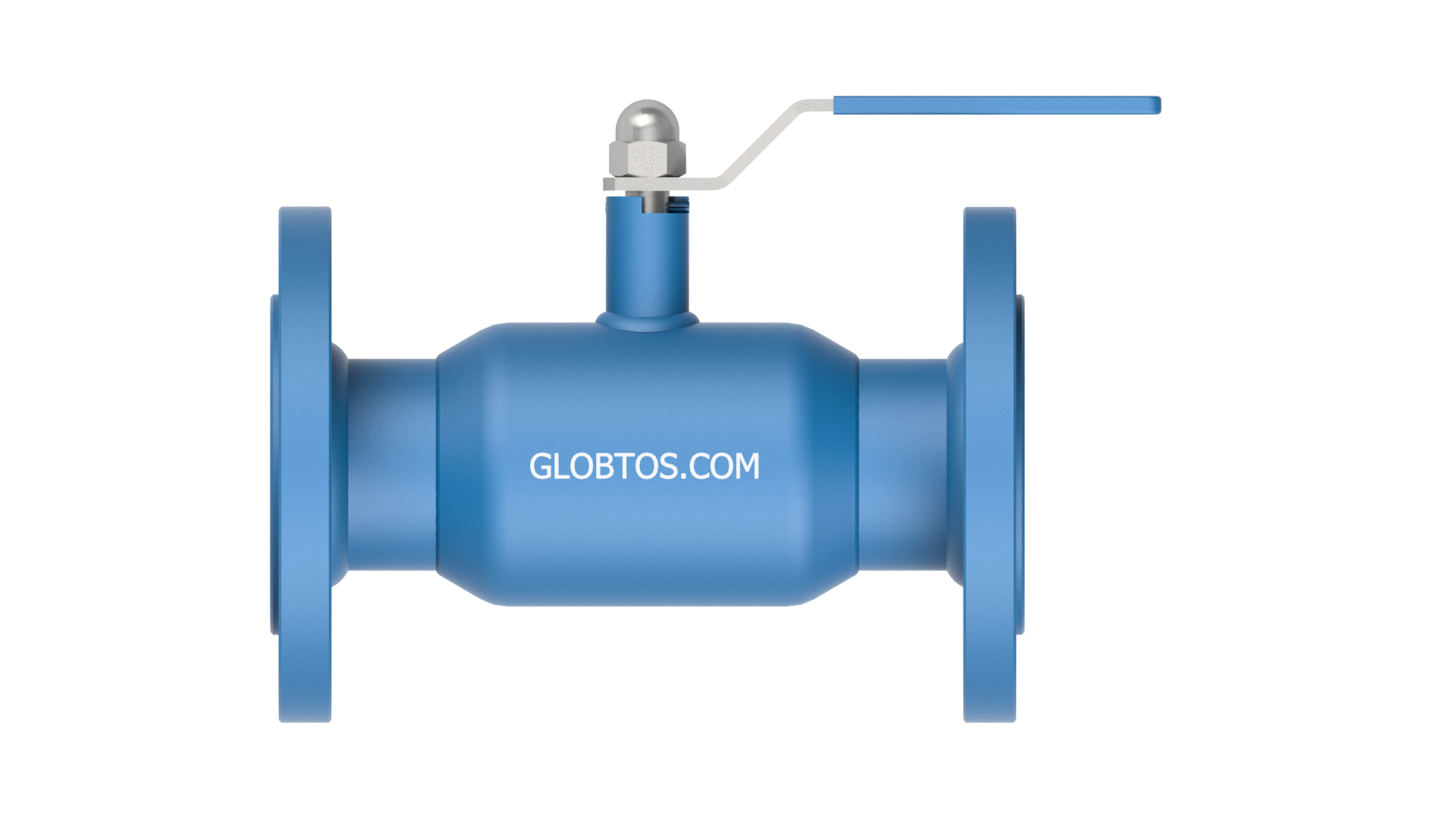

Flanged ball valve – reduced flow DN65 PN25

Compact fittings with easy installation. The GLOBTOS DN65 PN25 flanged ball valve with a flow-reducing handle is an economical solution combining compact design with the convenience of flanged installation.

Why choose this valve?

Welded construction – maximum reliability

The fully welded body eliminates potential leak points, ensuring years of trouble-free operation, even under challenging pressure and temperature conditions.

Compact dimensions

The reduced ball diameter translates into smaller dimensions and lower weight of the valve. Easier installation, reduced pipeline loads, and lower purchase costs – while maintaining full shut-off functionality.

The versatility of flange connections

EN 1092-1-compliant flanges ensure compatibility with most installations. Disassembly without cutting the pipeline simplifies service and upgrades.

Quality of materials

• Body: High-quality carbon steel – high strength
• Flanges: Compliant with EN 1092-1
• Ball: High-quality stainless steel – abrasion and corrosion resistance
• Seals: PTFE+C and EPDM+FVMQ
• Tightness class: A

Where to apply?

• Heating and cooling networks
• Industrial installations with limited space
• Technological nodes
• Transmission pipelines
• Installations that require disassembly

Availability and implementation

A wide range of products in stock. Orders placed before 11:00 AM are shipped the same day. Our own transport fleet ensures fast and safe delivery without additional logistics costs throughout Poland.

Technical parameters

• Nominal diameter: DN65
• Nominal pressure: PN25
• Control: with handle
• Temperature range: -20°C to +200°C
• Connection type: Flanged (both sides)
• Flow type: Reduced
• Flanges: Compliant with EN 1092-1

Compliance with standards

• Flanges: EN 1092-1
• Tightness class: A (according to EN 12266-1)
• Operating parameters consistent with pressure-temperature graphs
