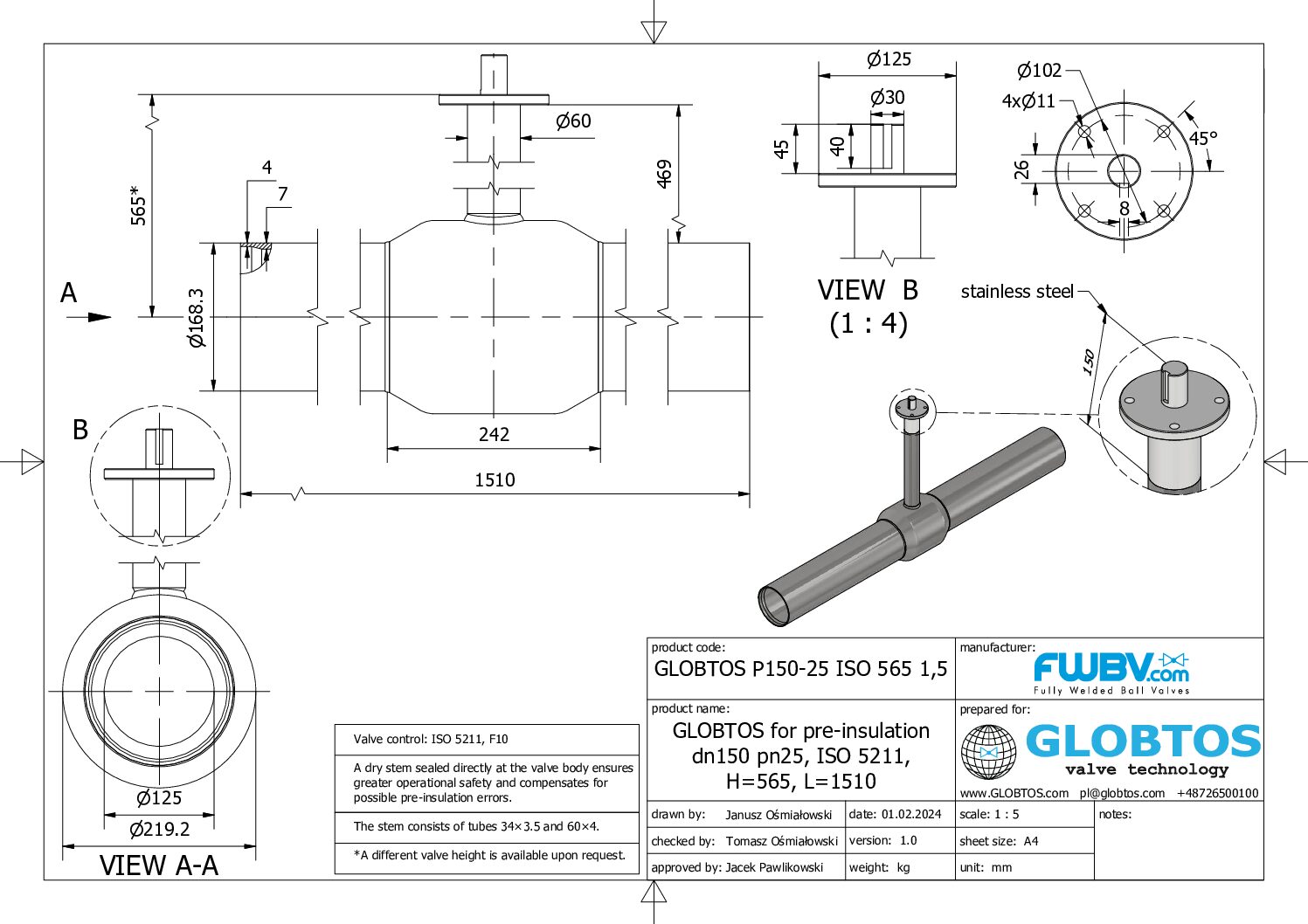

GLOBTOS P150-25 ISO 565 1,5

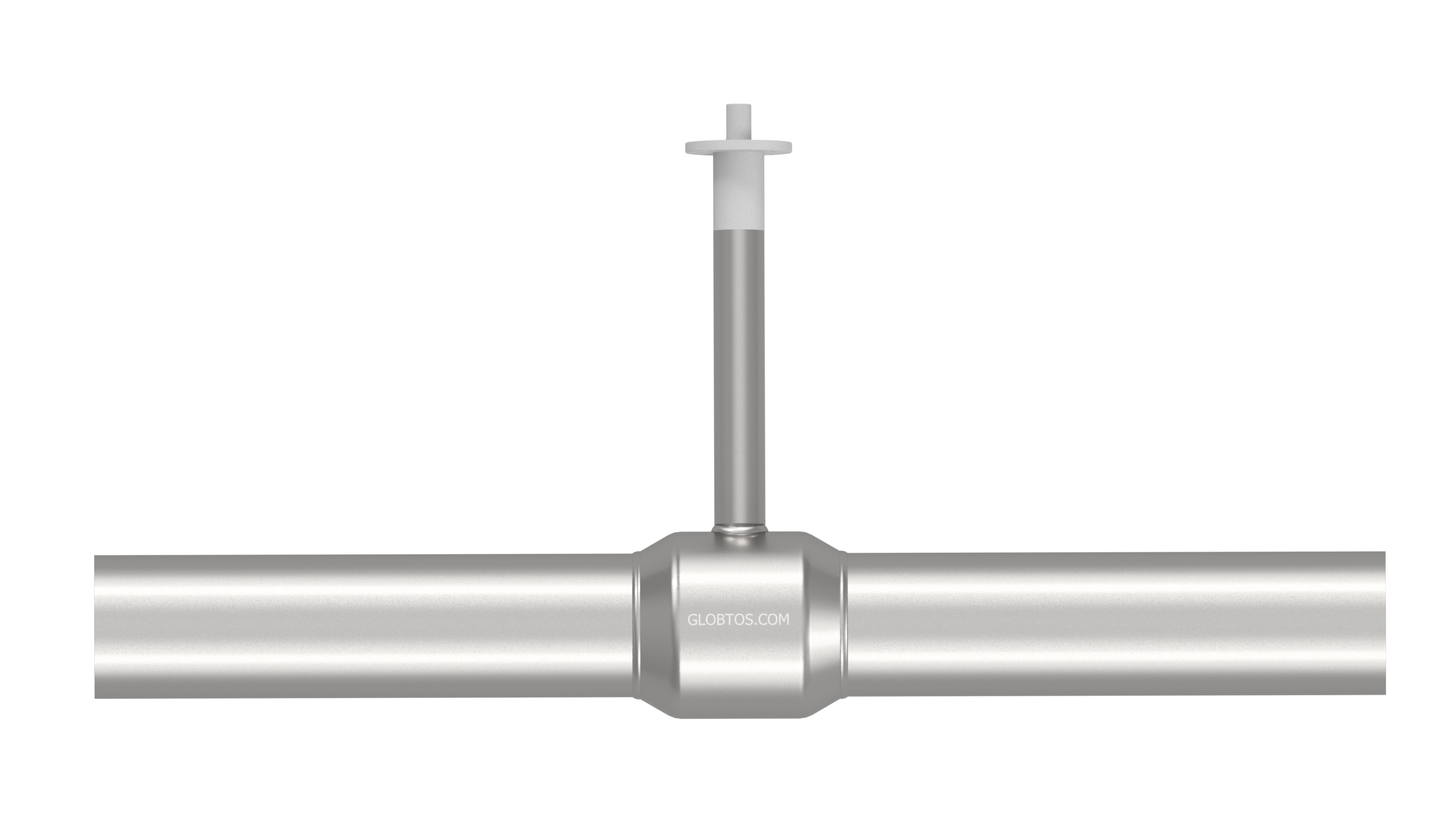

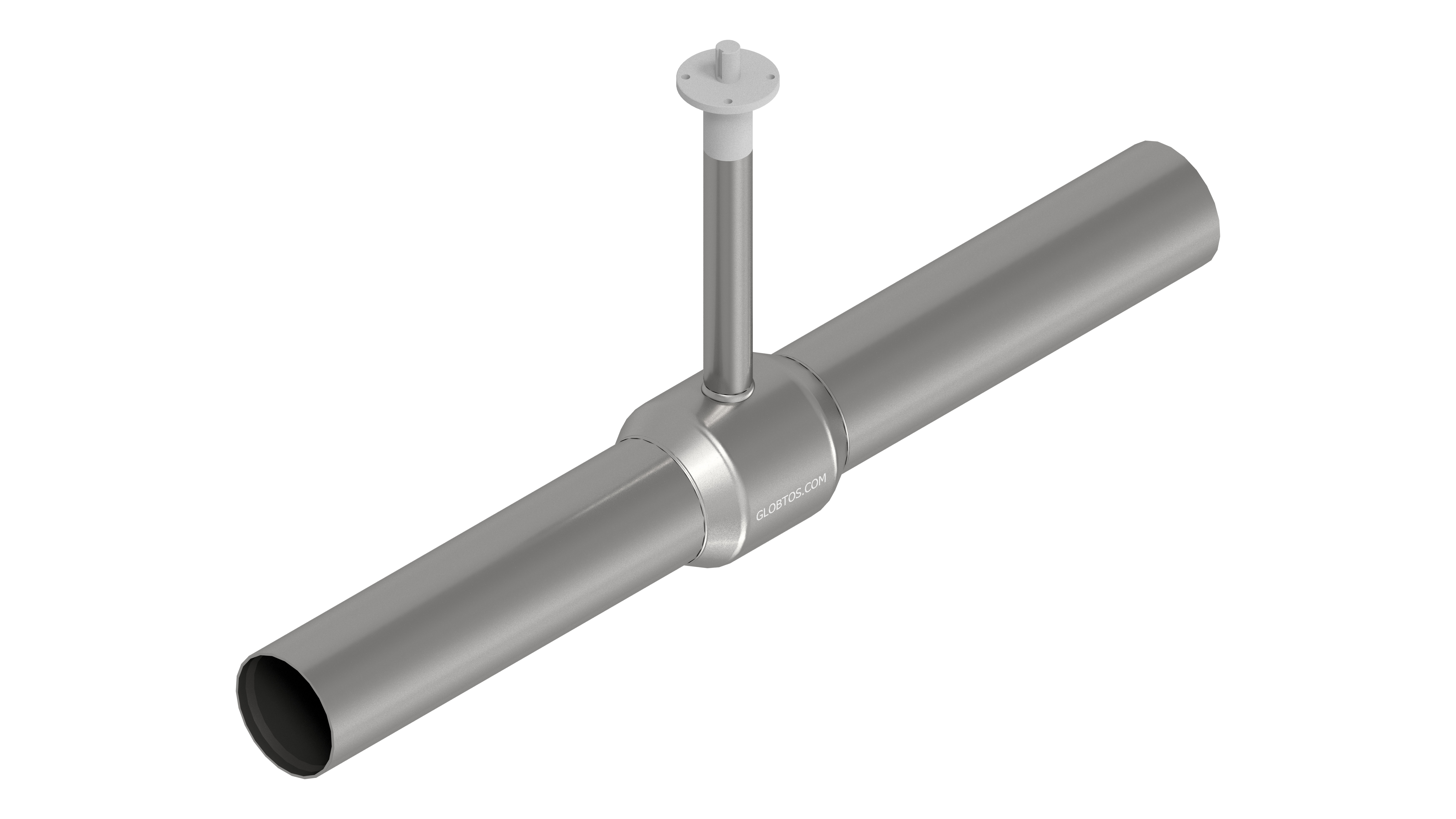

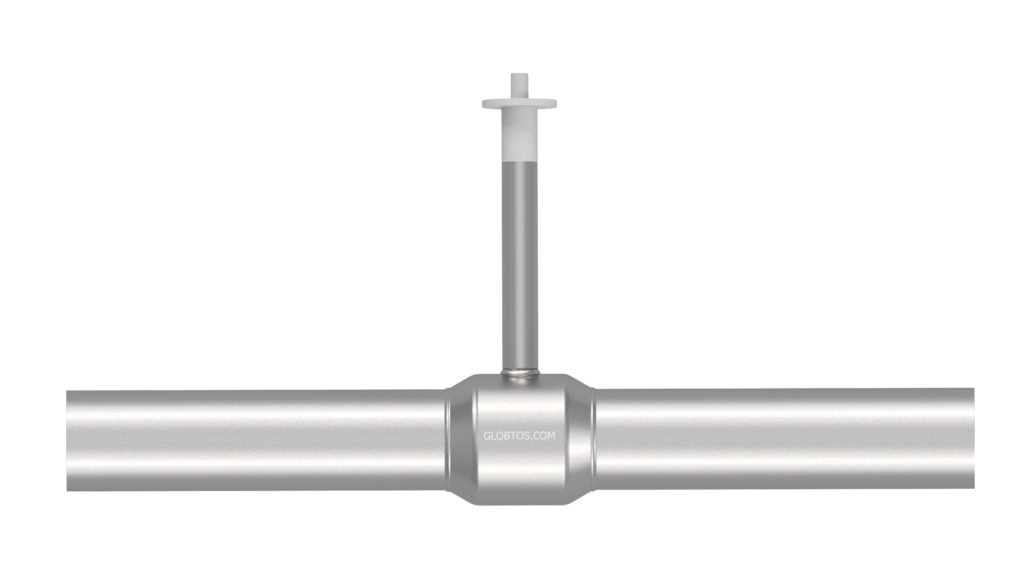

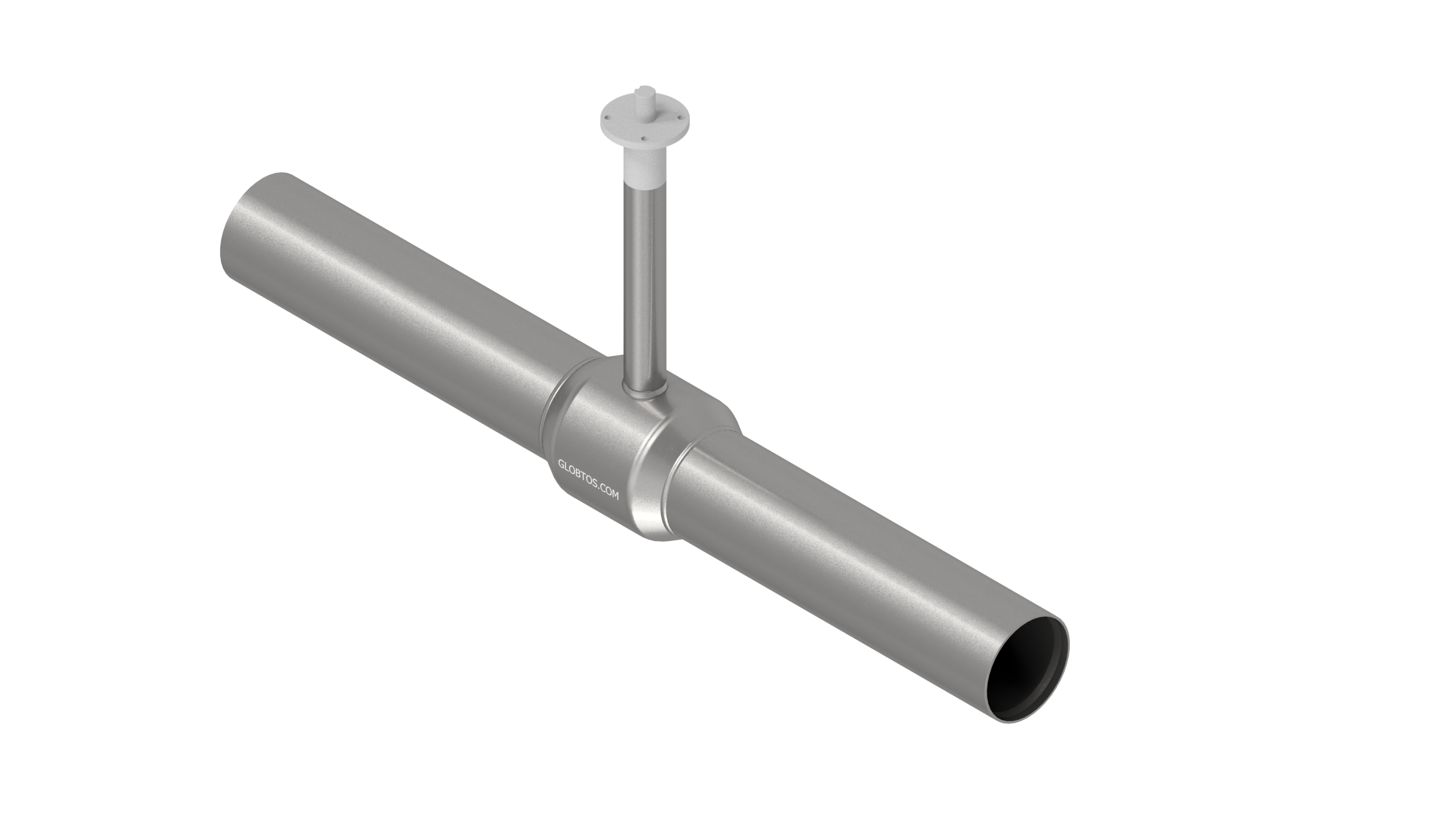

Ball valve for pre-insulation – reduced bore DN150 PN25

Compact valve solution for underground networks. The GLOBTOS DN150 PN25 ball valve for gear with ISO 5211 for pre-insulated systems with reduced bore featuring dry stem technology is an economical solution for underground district heating networks.

Key features of the valve:

Dry stem – insulation protection

The special design with sealing located next to the ball eliminates the risk of flooding the pipeline insulation layer. This is crucial for maintaining thermal insulation performance and ensuring long service life of the entire system.

Compact design

The reduced ball diameter allows for smaller valve dimensions, making installation easier in chambers and inspection wells. Lower weight also ensures easier handling during installation.

Compatibility with pre-insulated systems

The design compliant with EN 488 ensures full compatibility with pre-insulated pipelines. Standard dimensions allow seamless integration with existing infrastructure.

Premium materials – durability guarantee

• Welded body: High-quality carbon steel – high strength
• Extended stem: High-quality stainless steel – corrosion resistance
• Ball: High-quality stainless steel – resistance to wear and corrosion
• Special thermal insulation seals
• Anti-corrosion protection

Applications

• Underground district heating networks
• Pre-insulated pipelines
• District heating transmission lines
• EN 488 compliant installations
• Municipal and residential heating networks

Availability and Lead Time

Product available upon customer request. Lead time to be agreed individually.

Technical Specification

• Nominal diameter: DN150
• Nominal pressure: PN25 (25 bar)
• Operation: for gear with ISO 5211
• Temperature range: -20°C to +200°C
• Bore type: Reduced Bore
• Technology: Dry stem system
• Compliance: EN 488

Compliance with standards

• EN 488 – pre-insulated piping systems
• Leakage class: A (according to EN 12266-1)
• Welded construction compliant with district heating network requirements

GLOBTOS – valves designed for operation in demanding conditions
